Permanent Magnet Generator (PMG): The Core Technology for Stable Power in Modern Generator Sets
In the diesel and gas generator set industry, power supply stability, reliability, and quality are the key metrics for measuring performance. The Permanent Magnet Generator (PMG), as an advanced excitation technology, has become a mainstream configuration in high-end generator sets to handle demanding loads and ensure critical power backup. This article provides a professional analysis of PMG technology, its working principle, and its core value to the industry.
1. What is a Permanent Magnet Generator (PMG)?
A Permanent Magnet Generator (PMG) is a special type of generator that uses high-performance permanent magnets (such as Neodymium Iron Boron) as the rotor excitation magnetic field. It does not directly power the main load but acts as an independent excitation power source, providing stable and reliable energy to the automatic voltage regulation system of the set’s main AC generator (main alternator).
It forms the heart of a brushless excitation system: PMG (Excitation Power Source) + AVR (Automatic Voltage Regulator) + Exciter + Main Generator.
2. How Does a PMG Excitation System Work?

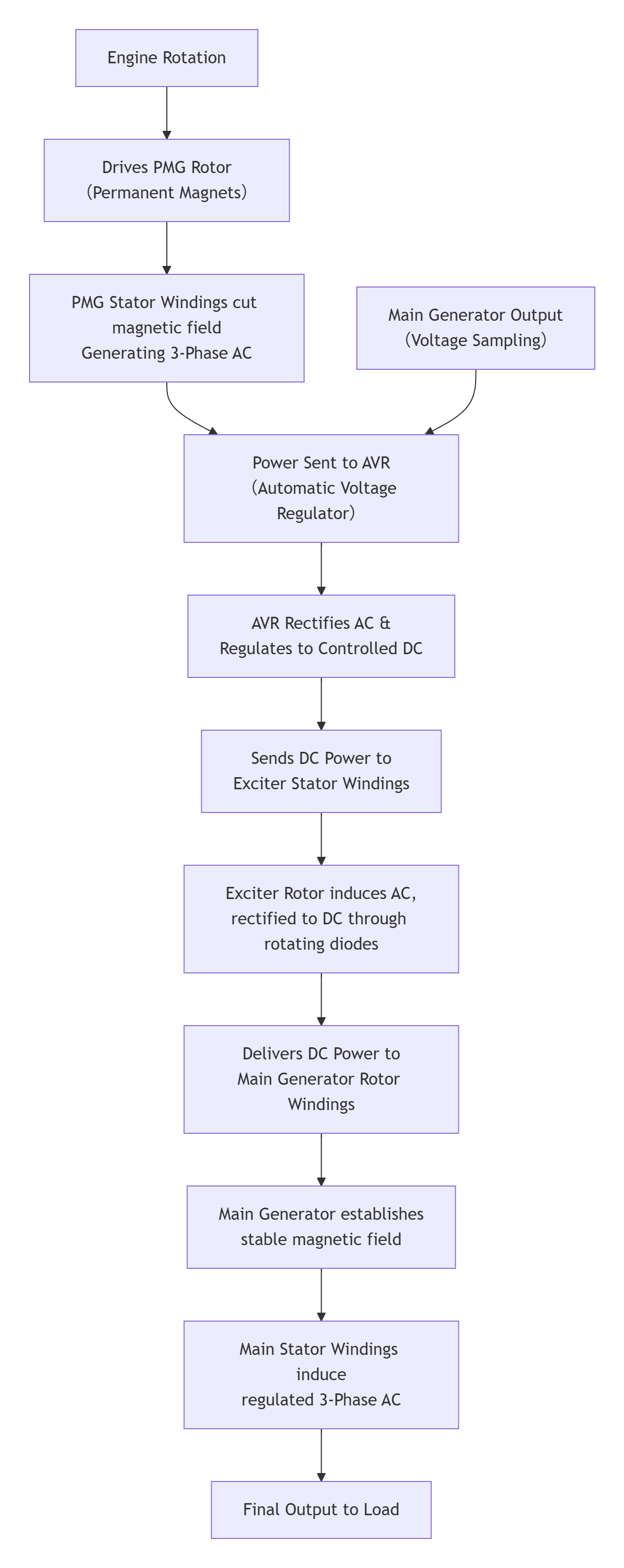

The operation of a PMG excitation system is a precise process of energy conversion and regulation, as illustrated in the following flowchart:
3. PMG vs. Traditional Self-Excited (Shunt) Systems
Compared to “self-excited” (shunt) systems which draw power directly from the main generator output, PMG excitation technology offers clear advantages:
| Feature | PMG Excitation System | Traditional Self-Excited System |
|---|---|---|
| Excitation Power Source | Independent from main output, provided by permanent magnets; clean and stable | Drawn from the main generator output, highly susceptible to load fluctuations |
| Voltage Recovery | Superior. Maintains excitation even during voltage dips, ensuring faster recovery | Weaker. Excitation energy drops during a dip, slowing recovery |
| Performance with Non-Linear Loads | Excellent. Minimizes waveform distortion impact from motor starting, VFDs, UPS systems | Poor. Susceptible to instability and distortion due to harmonic feedback |
| Reliability | High. Independent source, brushless design reduces maintenance, less affected by faults | Medium. Relies on residual voltage; more sensitive to faults |
4. Core Value and Applications in Diesel/Gas Generator Sets
For diesel and gas generator sets, employing PMG technology indicates their power quality and reliability are aligned with higher industrial standards.
- Superior Motor Starting Performance
The PMG system can supply ample excitation current to start large inductive motors, effectively suppressing voltage dips caused by inrush currents. This ensures successful motor starting without compromising sensitive connected equipment. - Protecting Critical Infrastructure
In applications where even millisecond outages are unacceptable—such as data centers, hospitals, telecommunications base stations, and financial trading centers—PMG-equipped generator sets are the preferred choice to guarantee seamless transfer and high-quality power. - Handling Harsh Industrial Loads
In industries with fluctuating or heavy loads, such as oilfield drilling, mining, welding, and lifting machinery, PMG systems provide excellent adaptability and stable operation, enhancing equipment safety and continuity. - Providing Cleaner Power for Modern Non-Linear Loads
With the growing use of non-linear loads like variable frequency drives (VFDs), servers, and LED lighting, harmonic interference is a major concern. By isolating the excitation source from the main circuit, the PMG system reduces the impact of load harmonics on excitation stability, helping maintain low total harmonic distortion (THD) for downstream sensitive devices.
5. Conclusion
The Permanent Magnet Generator (PMG) excitation system is not merely an additional feature; it represents a significant advancement in generator excitation technology. By physically separating the excitation source from the main output, it minimizes interference, improves voltage stability, enhances transient response, and strengthens load-handling capability.
For users who demand uncompromising power reliability, choosing a diesel or gas generator set equipped with PMG technology is not just selecting a configuration—it is investing in a fundamental capability for power security. PMG technology underpins the ability of modern, intelligent generator sets to remain resilient and deliver stable power in increasingly complex electrical environments.
