MTU Generators: Engineering-Driven Diesel Power Solutions

In modern power system design, generator performance is judged not by isolated parameters, but by how consistently the system behaves under real operating conditions. MTU Generators, developed under Rolls-Royce Power Systems, follow a design philosophy rooted in mechanical engineering fundamentals, long service life, and predictable performance.

1. Power Platforms Structured Around Mechanical Output

From an engineering perspective, MTU defines its generator platforms based on engine mechanical power (kWm). This approach provides a transparent basis for matching engines, alternators, and electrical loads, and avoids ambiguity often associated with headline kVA figures.

MTU Series 1600

• Engine power range (50 Hz): approx. 524–888 kWm

The Series 1600 is designed for medium-scale installations where space efficiency and compact layout are important. Its balanced output range makes it well suited for modular power systems and applications requiring flexible redundancy planning.

MTU Series 2000

• Engine power range (50 Hz): approx. 580–1,235 kWm

With a broader power band, the Series 2000 supports higher load densities and offers greater operational margin. It is commonly selected for industrial and commercial power systems that demand stable performance under varying load conditions.

MTU Series 4000

• Engine power range (50 Hz): approx. 1,200–3,300 kWm

The Series 4000 platform is developed for large-scale and high-capacity installations. Its design supports reliable parallel operation and sustained output, making it suitable for complex power architectures with high availability requirements.

By structuring platforms around kWm ratings, MTU Generator Solutions enable more accurate system design and predictable electrical performance.

2. Performance Characteristics That Define MTU Diesel Generator Sets

MTU diesel generator sets are engineered to deliver consistent behavior across a wide operating envelope, rather than optimized performance at a single rated point.

• Reliability
  Mainstream MTU models achieve industry-leading MTBF figures, supporting long standby periods and reduced risk of unplanned outages.
• Rated load capability
  ESP, PRP, and DCP load factors reach 85%, 75%, and 100% respectively, reflecting realistic operating conditions in high-demand power systems.
• Transient response and load acceptance
  Fully compliant with ISO 8528-5 G3, MTU generators demonstrate stable transient behavior. Under NFPA 110, they are capable of accepting 0–100% step load, supporting smooth power transitions during utility disturbances.
• Alternator configuration
  High-capacity alternator selection provides strong reactive power handling, helping maintain voltage stability under complex load profiles.
• Fuel efficiency and service life
  Low specific fuel consumption (g/kWh), combined with overhaul intervals of up to 30,000 operating hours, contributes to controlled lifecycle costs and long-term operational stability.
• Emissions performance
  Optimized combustion design results in excellent FSN values, eliminating the need for additional black smoke filtration devices.

3. Application-Oriented Power Solutions

Because of their stable performance and predictable operating characteristics, MTU Diesel Generator Sets are widely used in:

• Data centers and digital infrastructure
• Healthcare facilities
• Airports and transportation systems
• Industrial and commercial power installations

In applications where power continuity and response speed are critical, MTU generators are valued for their controlled behavior during load changes and power transfer events.

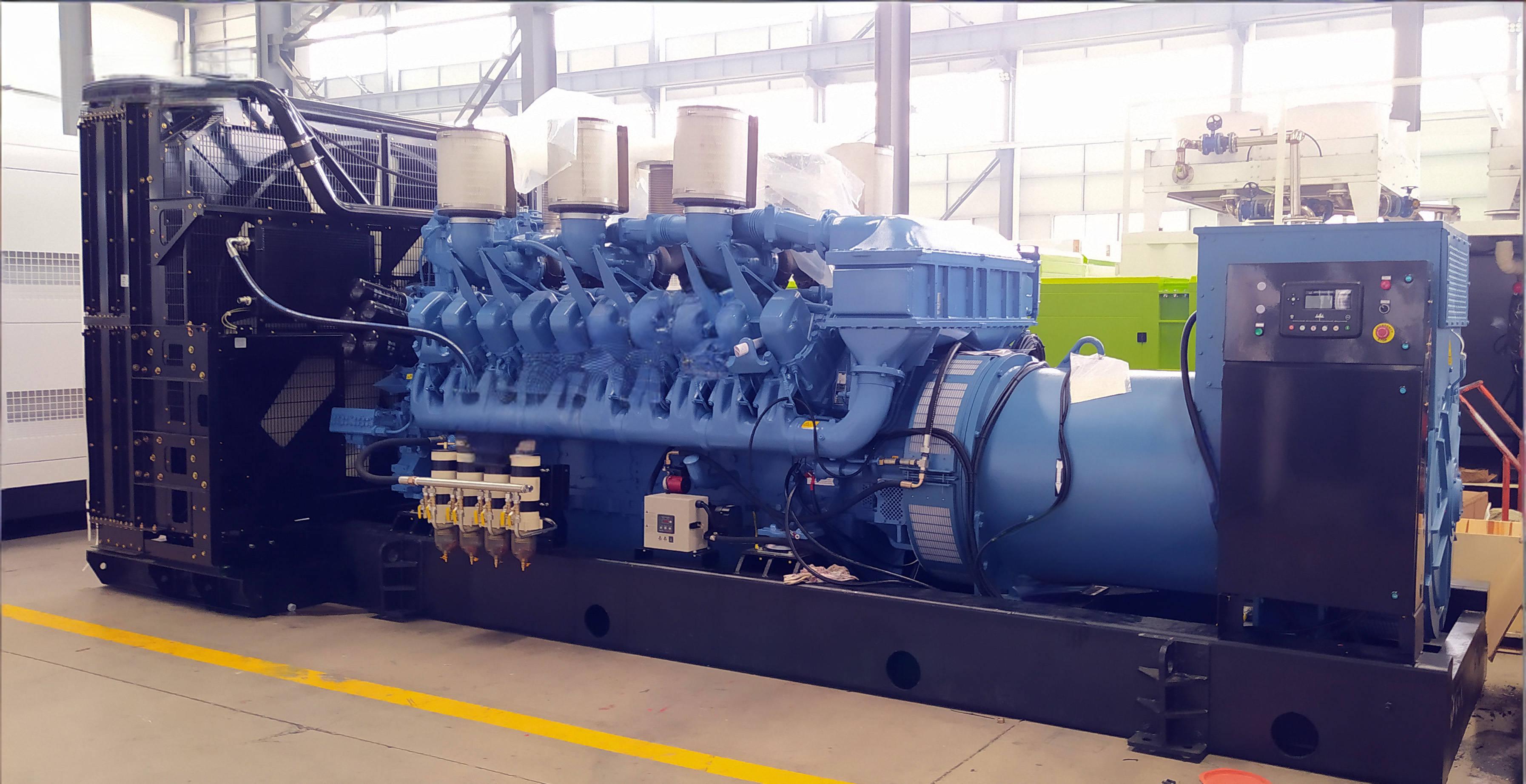

4. OWELL & GEN MTU Diesel Generator Solutions

Built on a long-term focus on diesel power engineering and system integration, OWELL & GEN MTU series diesel generator sets combine compact system design, precise manufacturing, and disciplined configuration practices.

These solutions are deployed across telecommunications networks and critical infrastructure projects, delivering dependable MTU Generator Solutions aligned with actual operating requirements rather than theoretical performance claims.
