Baudouin 500kW Natural Gas/Biogas Power Generator Set Solution
Key Specifications at a Glance
| Parameter | 50Hz Configuration | 60Hz Configuration |
|---|---|---|
| Prime Power | 550 kWe | 550 kWe |
| Speed | 1500 RPM | 1800 RPM |
| Voltage | 220-400V Base (Customizable to 3.3kV-11kV) | |
| Fuel Compatibility | Natural Gas / Biogas | Natural Gas / Biogas |
| Emission Compliance | Stage IIIA | Stage IIIA |
Technical Superiority
1. Advanced Combustion Technology
- Lean Burn System: Reduces NOx emissions while maintaining 41% thermal efficiency.
- Open-Chamber Design: Optimizes air-fuel mixing for stable operation under variable loads.
2. Robust Transient Response
- Achieves >50% single-step load acceptance and full load within two steps (ISO 8528 G3 compliance).

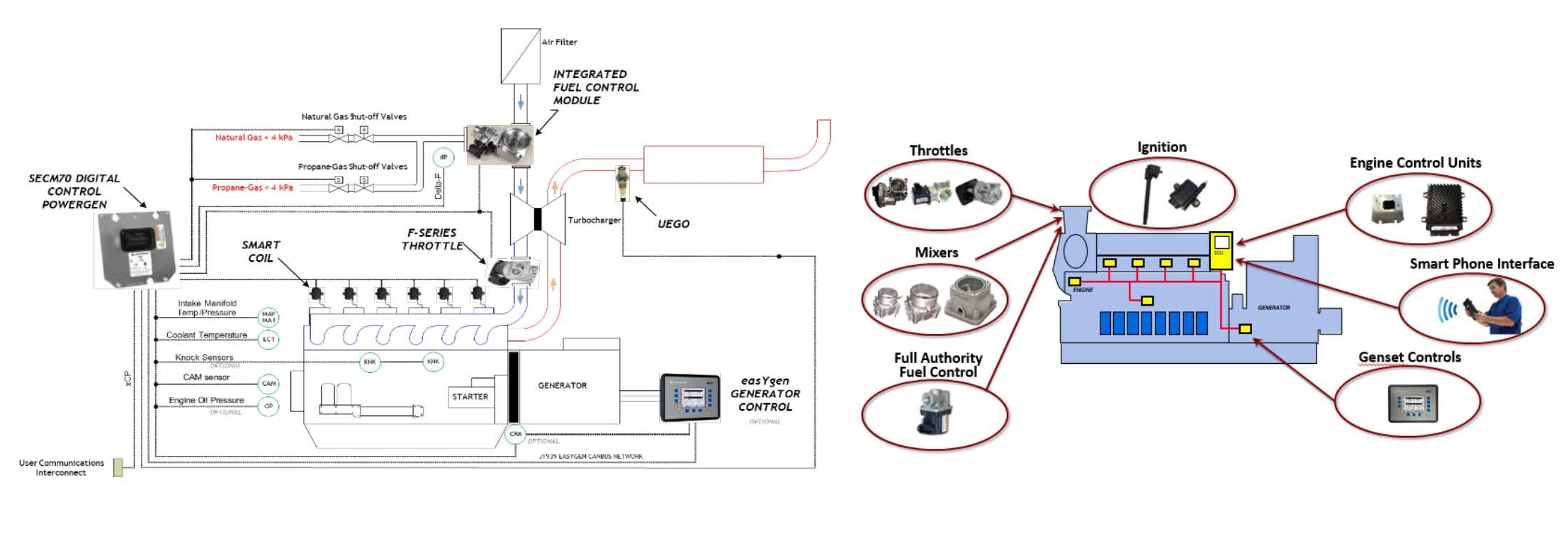

3. Intelligent Control & Safety
- Professional electronic control system with real-time diagnostics, anti-knock protection, and fire monitoring.
- Integrated sensors for low oil pressure, high coolant temperature, and system fault alerts.
Core Components
Engine Specifications
| Parameter | Details |
|---|---|
| Model | Baudouin 12M26D605E300NG |
| Cylinder Configuration | 12V (V-type), liquid-cooled |
| Displacement | 31.8L |
| Bore x Stroke | 150mm x 150mm |
| Air Management | Turbocharged + air-to-air intercooler |
| Structural Design | Cast iron block, replaceable wet liners |
| Power Output | 582kWm @1500RPM (550kWe) / 648kWm @1800RPM (600kWe) |
Customizable Generator System
| Component | Options |
|---|---|
| Alternator | Leroy Somer / Stamford / ENGGA, etc. |
| Control System | Deepsea / DEIF / Smartgen, etc. |
| Voltage Range | 220-480V ±5% (customizable single/three-phase output) |
| CHP Configuration | Waste heat recovery (flue gas ≥65% efficiency) + jacket water heat reuse |
| Enclosure | Containerized / Silent canopy / Mobile trailer |
Power Rating Definitions (ISO 8528)
| Rating Type | Standard | Capability |
|---|---|---|
| Continuous Power (COP) | ISO 8528 | Unlimited runtime at constant load (no overload capacity) |
| Prime Power (PRP) | ISO 8528 | Variable load with ≤70% average over 24h; 10% overload allowed (≤500 hours/year) |
| Standby Power | ISO 8528 | Emergency backup only (≤500 hours/year at 100% load) |
Advanced Configuration Options
1. Combined Heat & Power (CHP) System
- Flue gas heat recovery: ≥350kW thermal output via shell-and-tube heat exchanger.
- Jacket water heat reuse: 80-90°C hot water output (adjustable flow rate: 15-25m³/h).
- Integrated wastewater treatment: Oil-water separation system (0.5m³/h capacity).
2. Containerized Design
- 40ft high-cube standard: Integrated silencers, fuel system, and control room.
- Protection: IP55 waterproof/dustproof (withstands 55m/s wind speed).
- Noise reduction: Three-stage silencing (75dB@7m for canopy / 65dB@7m for container).
3. Smart Monitoring System
- Cloud-based remote management: Supports Modbus TCP/RTU, CANopen protocols.
- Black-start capability: ≤10-second emergency activation (NFPA110 compliant).
- Load management: Auto-synchronization for grid/island mode switching.
Why Choose OWELL – Baudouin Series?
✅ Globally Proven: Deployed in extreme environments (55°C Middle East oil fields, -30°C Nordic data centers).
✅ Modular Scalability: Expandable to 2MW via multi-unit parallel operation.
✅ Full Lifecycle Support: On-site commissioning + operator training + 10-year OEM parts commitment.
✅ Compliance Guaranteed: ATEX explosion-proof certification, CE Mark, ISO 8528 test reports.
Power Your Operations with Precision
OWELL – Baudouin 500kW Generator sets redefine reliability in gas-powered generation. Whether bridging grid gaps or enabling off-grid productivity, we deliver turnkey energy autonomy.
Request a performance curve analysis or site-specific derating report:
📧 info@owellindustries.com | 🌐 http://www.owellgenerators.com/
Technical Statement
All performance data based on ISO 3046 test conditions: 25°C ambient temperature, 100kPa atmospheric pressure, 30% relative humidity. Derating applies: 2.5% power reduction per 300m altitude gain; 1% reduction per 5°C above 25°C.
